McKnight | 2 Beds · 2 Baths · 820 SqFt

Standard Features

GENERAL:

• HUD Code
• 20 lb. Roof Load Std., 30 psf optional
• Wind Zone I Std., zones II and III optional
• Thermal Zone 2 Standard, Thermal Zone 3 Optional

FRAME:

• I Beam: 12” or 10” model specific
• Outriggers: 96” spacing
• Crossmembers: 96” spacing
• Header: (Front/Rear) Flush, not recessed
• Axles: Spread (no equalizers) overslung mounted
• Brake Axles: Two, except where more are mandatory by state DOT
• Hitch Beam: 8” Detachable Hitch

FLOOR:

• Joists: 2×6 / 16” O.C.
• Carpet: TRU Select
• Carpet Bar: None
• Pad: 5 lb. Rebond Pad
• Vinyl: TRU Select
• Decking: 19/32” 4×8 OSB T&G

EXTERIOR (7’-0” SIDEWALLS, 7’-0” ENDWALLS):

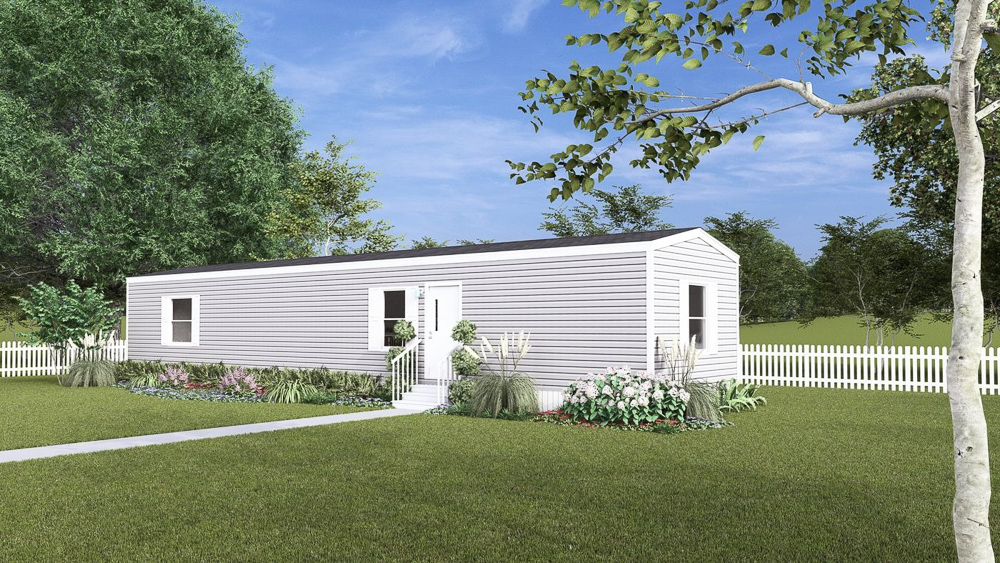

• Vinyl Siding: Standard
• Sheathing: WZ I Foam standard, plant specific brand.
• Exterior Faucet
• Shutters: Front Door Side Windows

WINDOWS AND DOORS:

• Front door: In Swing Door w/ Storm
• Rear door: Out Swing 9-Lite Door
• Interior doors: TRU Select
• Windows: Thermal Pane Low E Vinyl, size per prints

ROOF / CEILING:

• Shingles: 20 year
• Trusses: 24” O.C. spacing
• Sheathing: 7/16” OSB
• Insulation: Blown Fiberglass
• Ceiling: Textured
• Ceiling Slope: Vault/Flat Ceiling
• Attic Ventilation: Static & Ridge Vents

PLUMBING:

• Water Heater: 40 gallon electric
• Kitchen Sink: Stainless Steel, dbl bowl

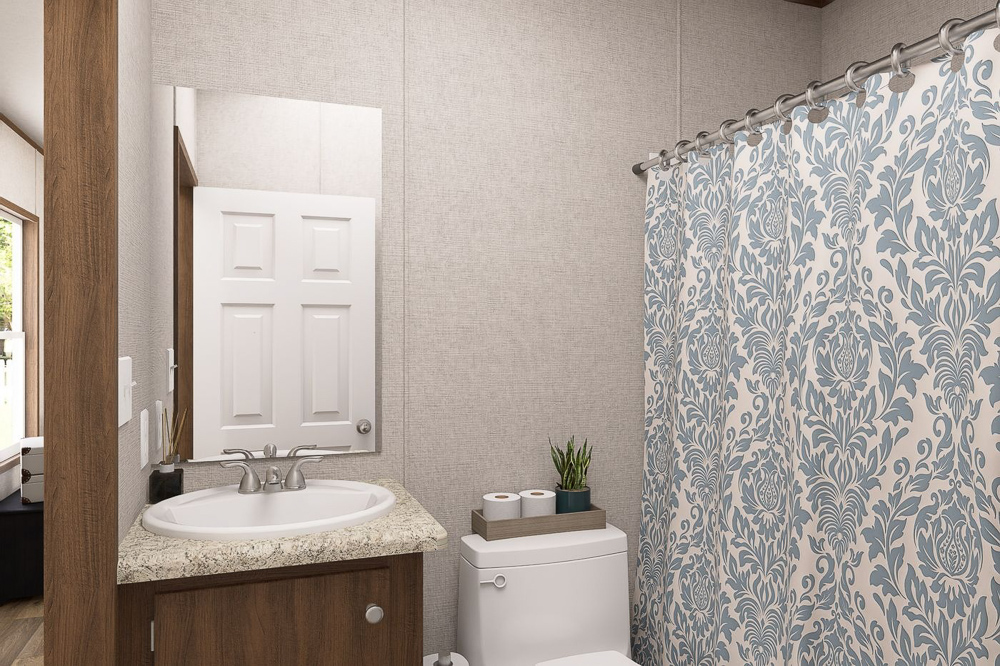

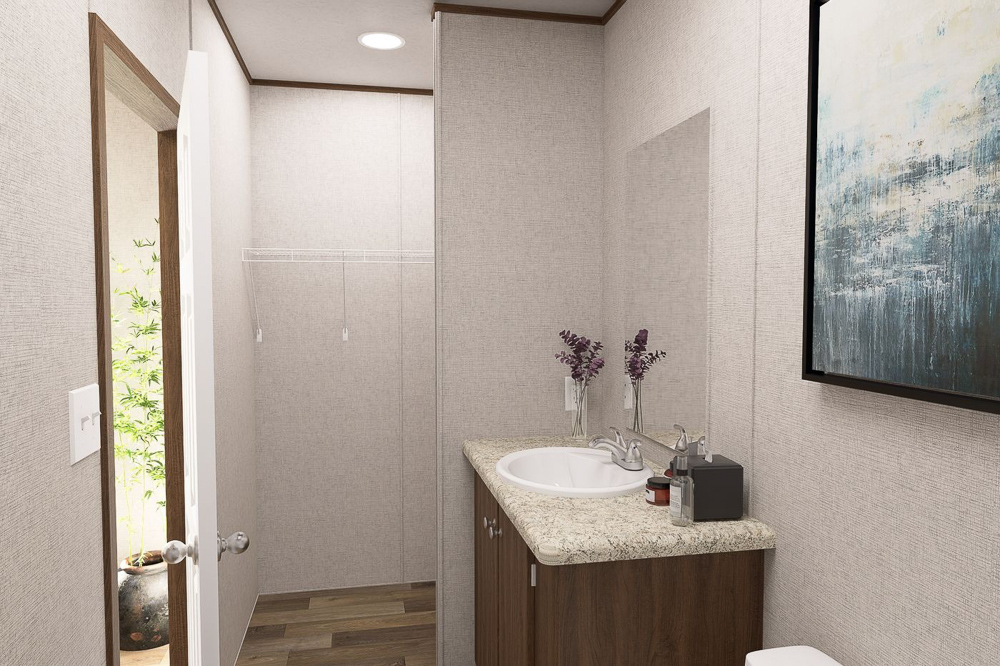

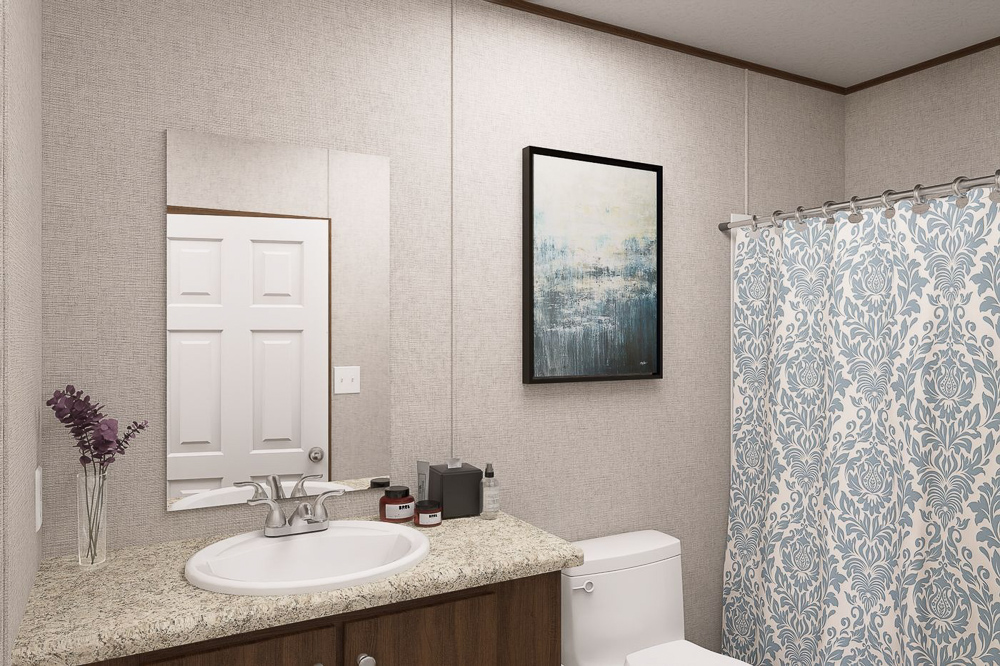

• Lavatory Sinks: Plastic
• Faucets: Plastic
• Master Bath: 54 ABS Plastic Tub
• Hall Bath: 54 ABS Plastic Tub
• Whole House Water Shut Off
• Ice Maker Ready

HVAC:

• Heat: Electric (gas optional)
• Ductwork: Metal duct
• Thermostat: Ecobee Smart Thermostat

ELECTRICAL:

• Load Center: 200 amp
• (100 amp allowed when gas option ordered – gas range and gas furnace)
• Exterior Receptacles: (1) GFI recept and cover
• Interior Receptacles and Switches: White, self contained
• Phone Jack(s): None
• AC: Conduit

WALLS:

• Exterior Wall Construction: 2×4, 16” O.C. spacing
• Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
• (combo vault/flat ceiling, per prints)
• Interior Wall Construction: 2×3, 24” O.C. spacing (per print)
• Wall Coverings: 3/8” paper on gyp
• Wall Coverage at Closets: 3/8” gyp, raw

INTERIOR FEATURES:

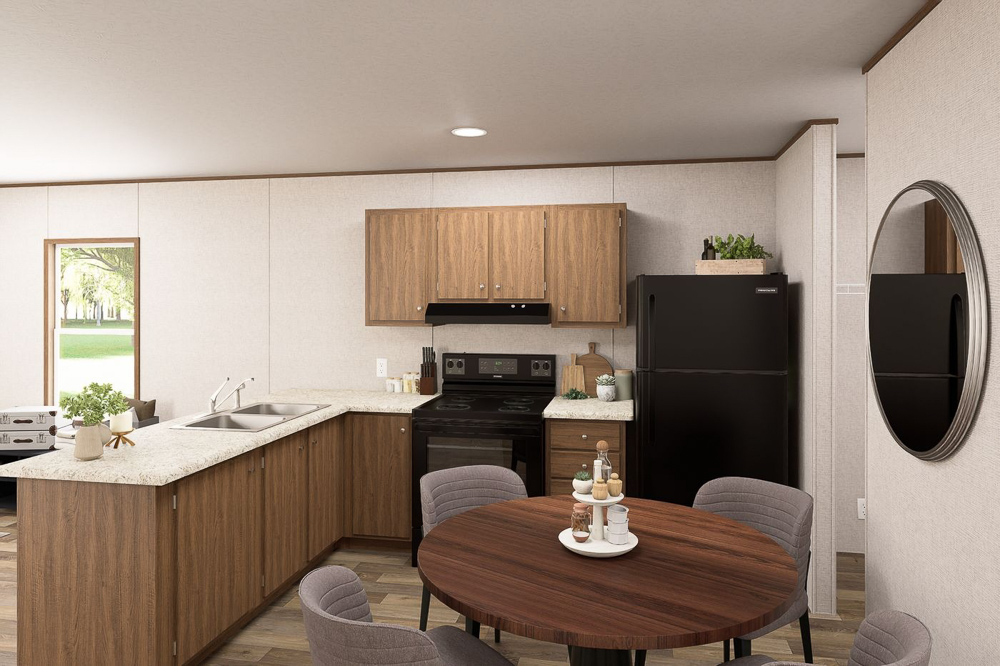

• Cabinets: DuraCraft (duracraftcabinets.com)
• Countertops (All): Laminant (TRU Select)
• Backsplash: None

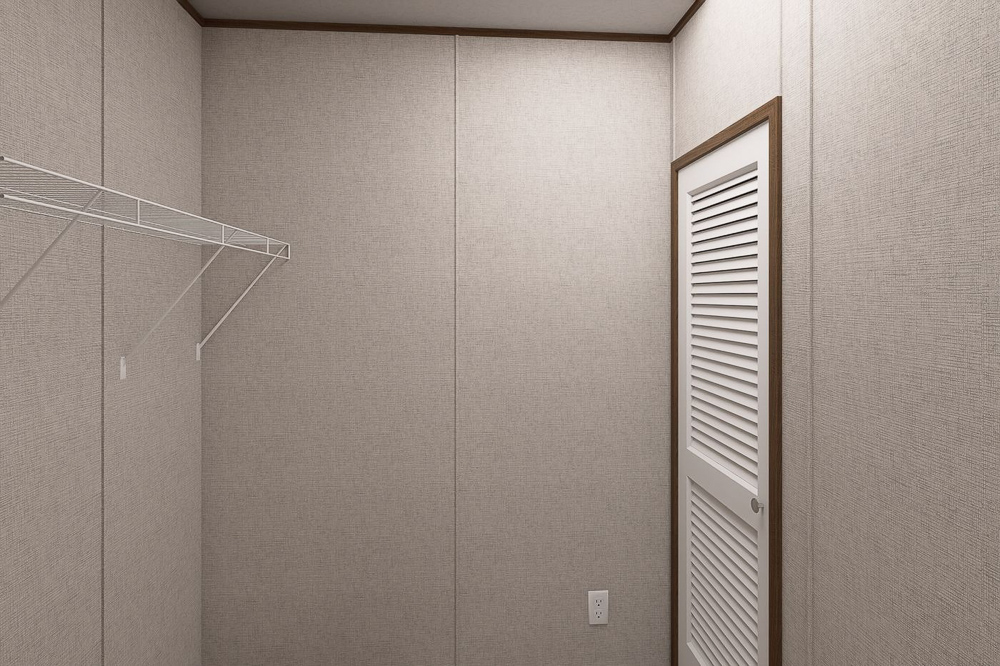

• Closet Shelving: Closet Maid – vinyl wrapped metal
• Utility Shelving: above washer/dryer
• Refrigerator: 18 CF
• Range: Electric
• Range Hood: 30”, 100 cfm min, vent through sidewall

COLOR SCHEME:

• TRU Select

THERMAL (INSULATION AND WINDOW SPECS):

• Zone II (standard) Floor: R-11 Wall: R-11 Ceiling: R-14
• Zone III (optional) Floor: R-22 Wall: R-11 Ceiling: R-30
