Littlefield | 3 Beds · 2 Baths · 902 SqFt

14 X 66 Single Wide HUD Manufactured Home
TRU Homes Singlewides Series by Clayton Homes · Economy Priced Homes

The Littlefield model has 3 Beds and 2 Baths. This 902 square foot Single Wide home is available for delivery in California, Arizona, Nevada.

Littlefield 3D Floor Plan

Littlefield Virtual Tour

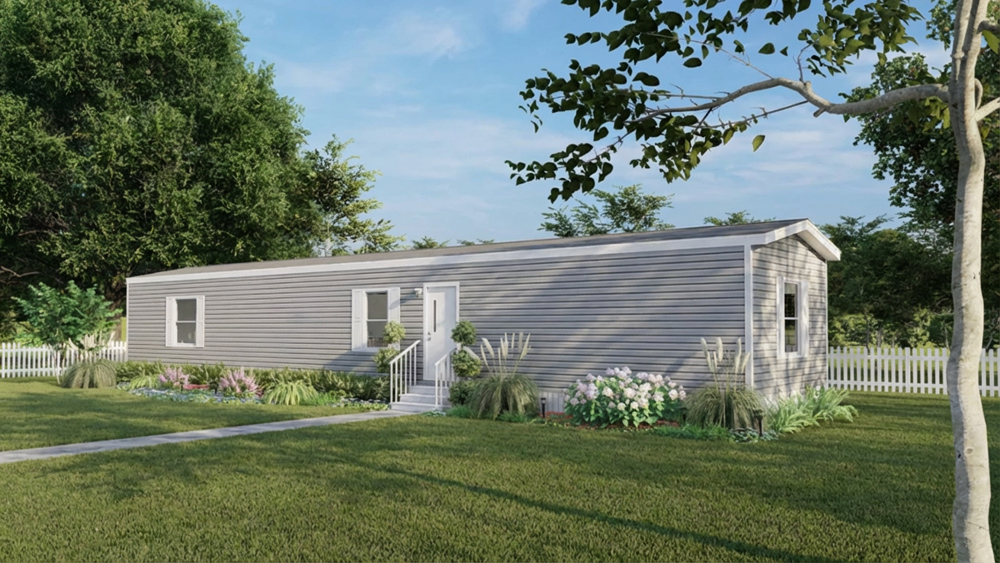

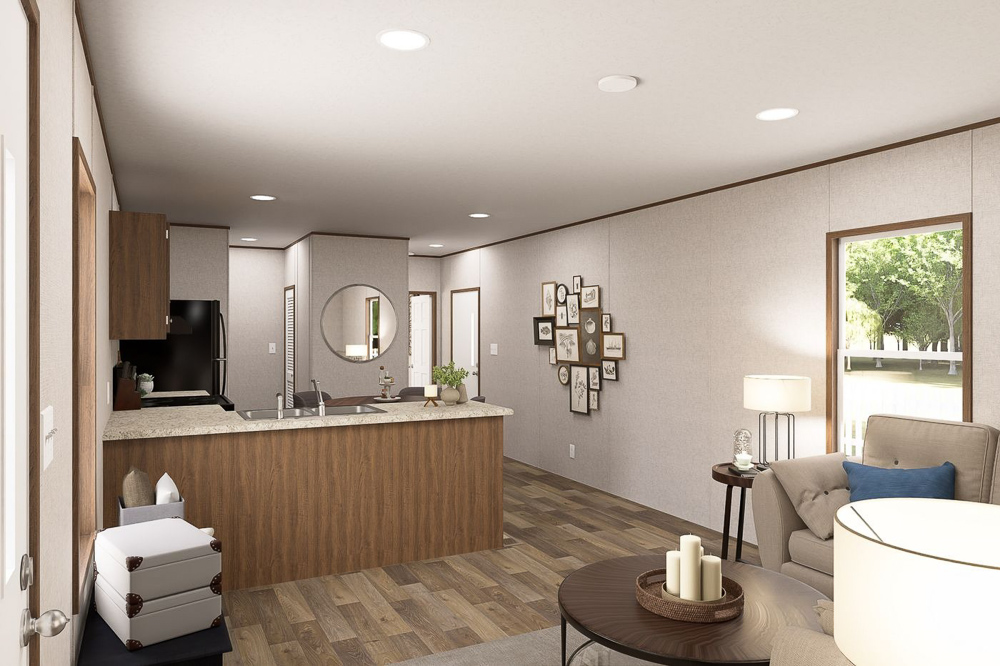

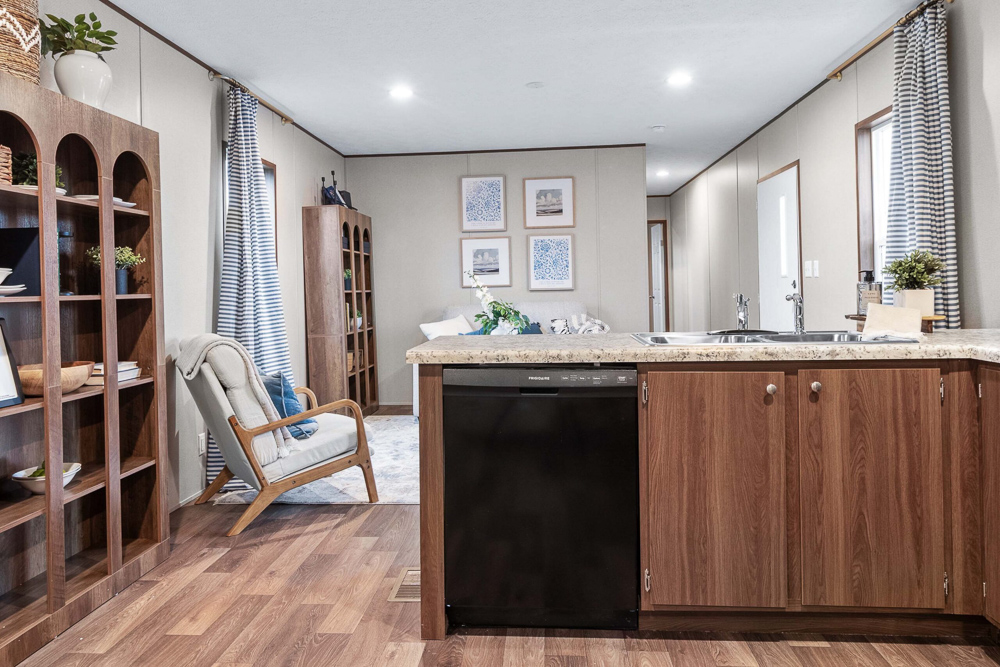

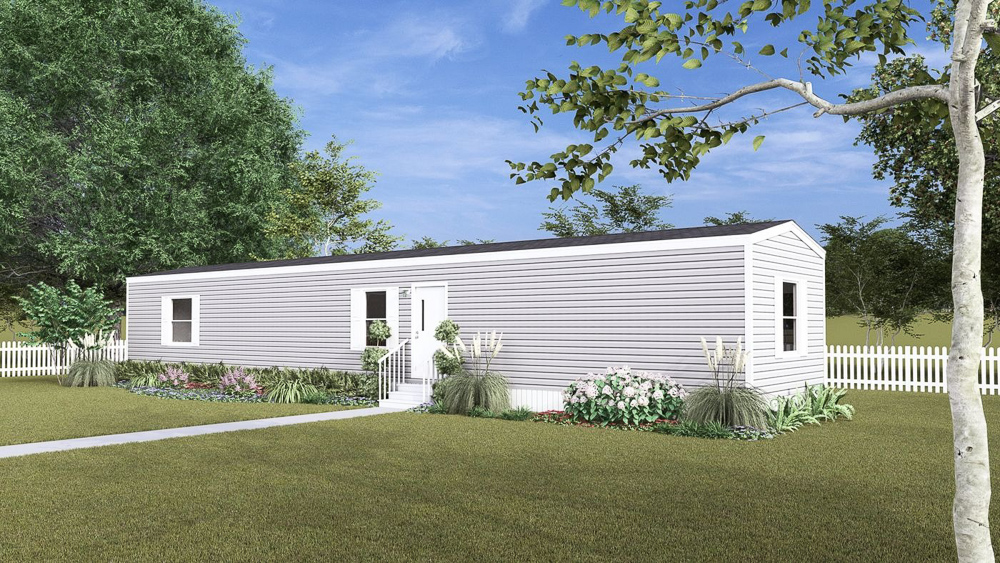

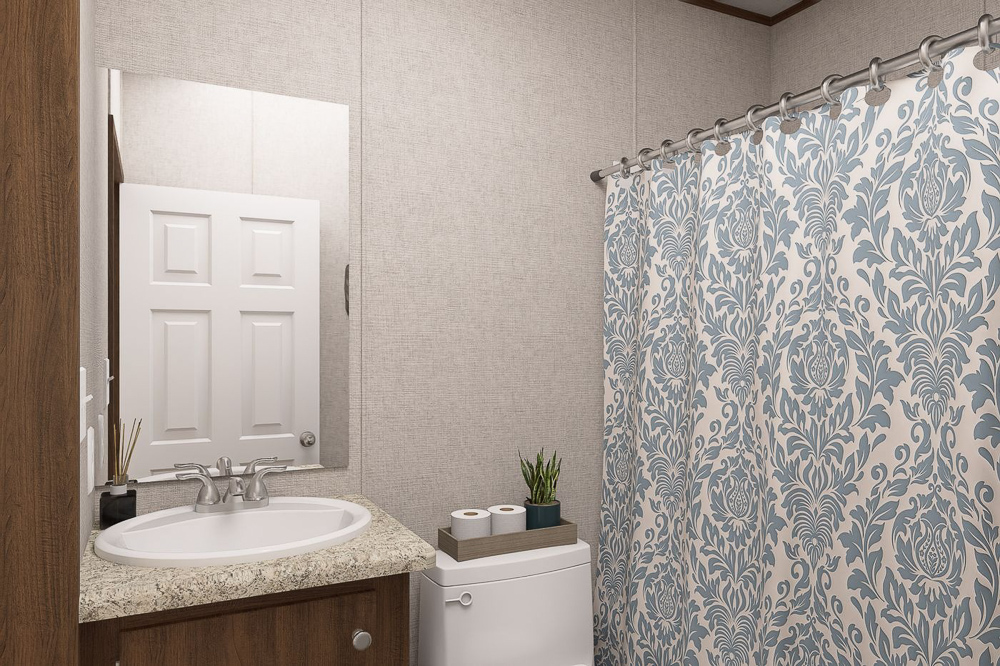

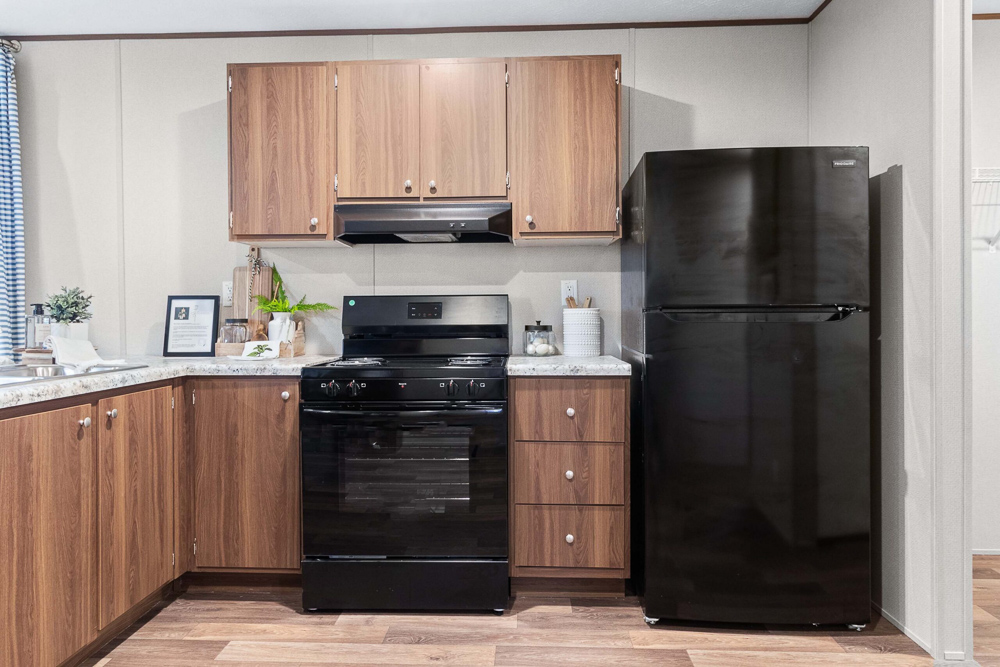

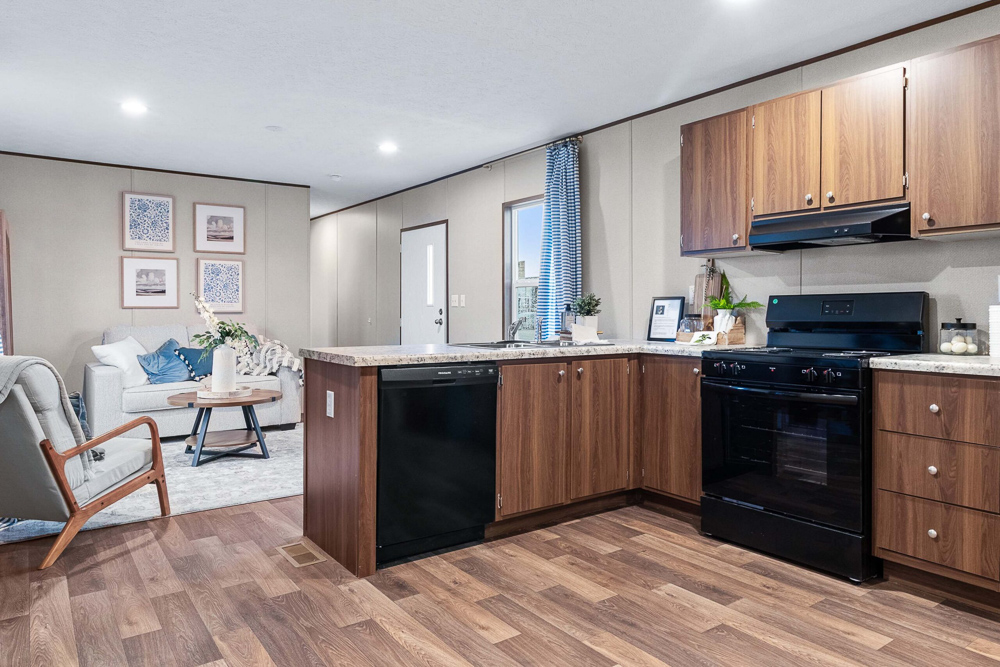

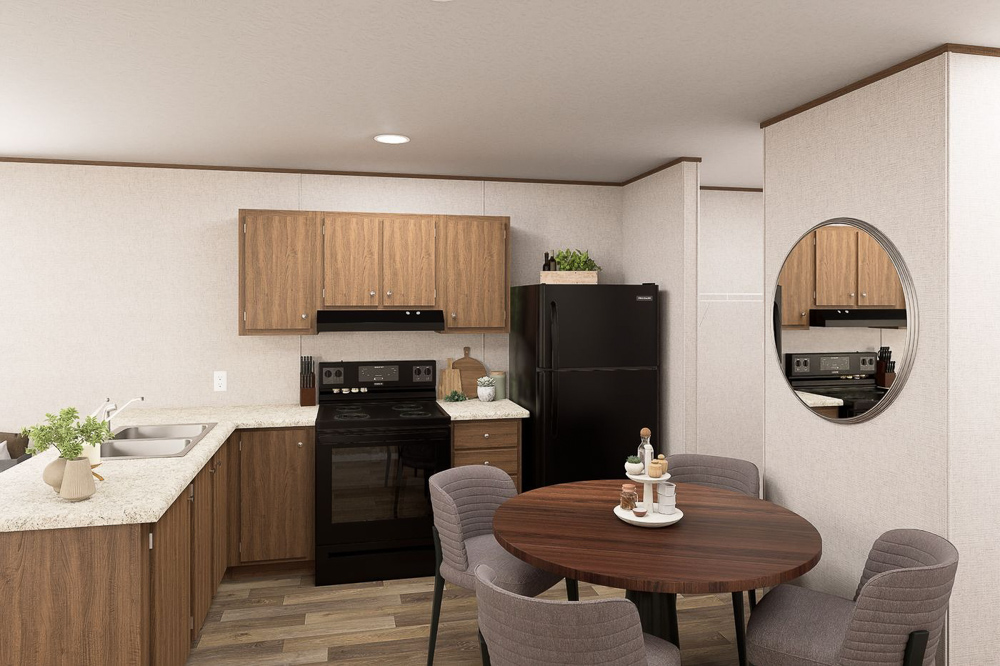

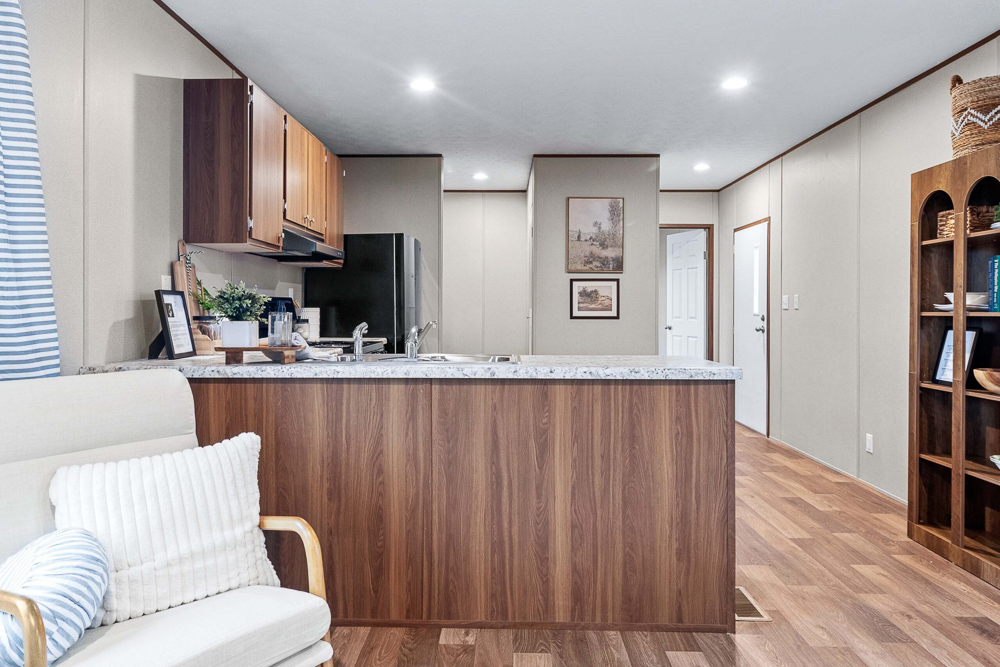

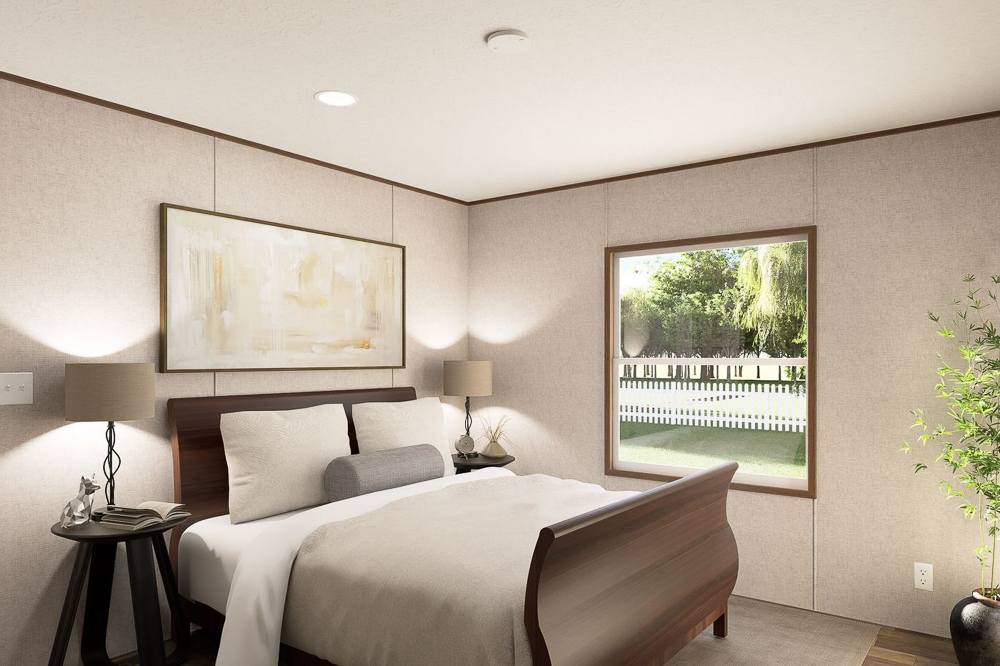

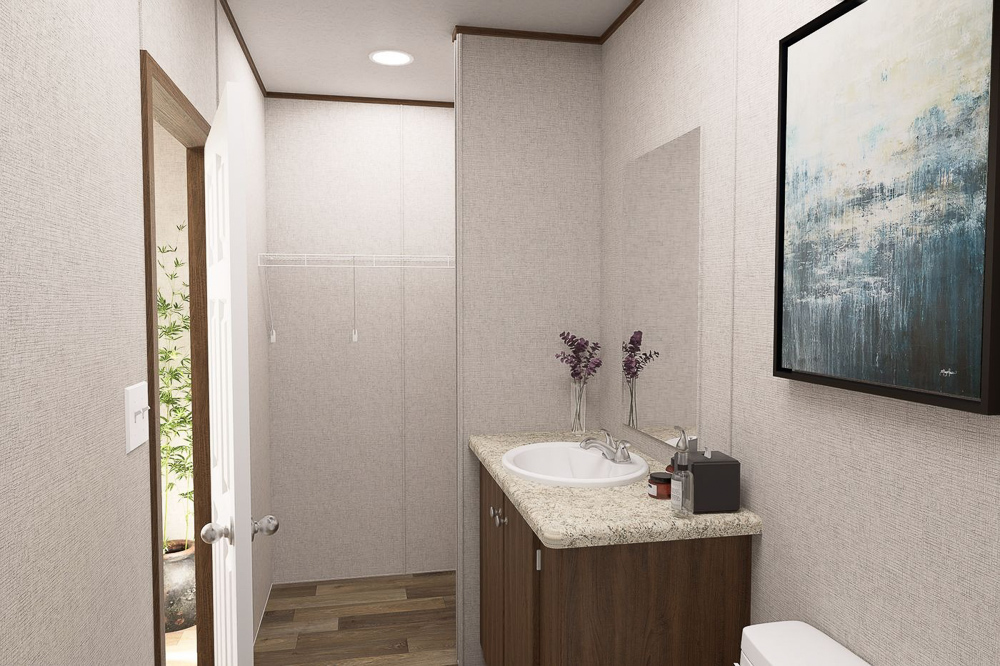

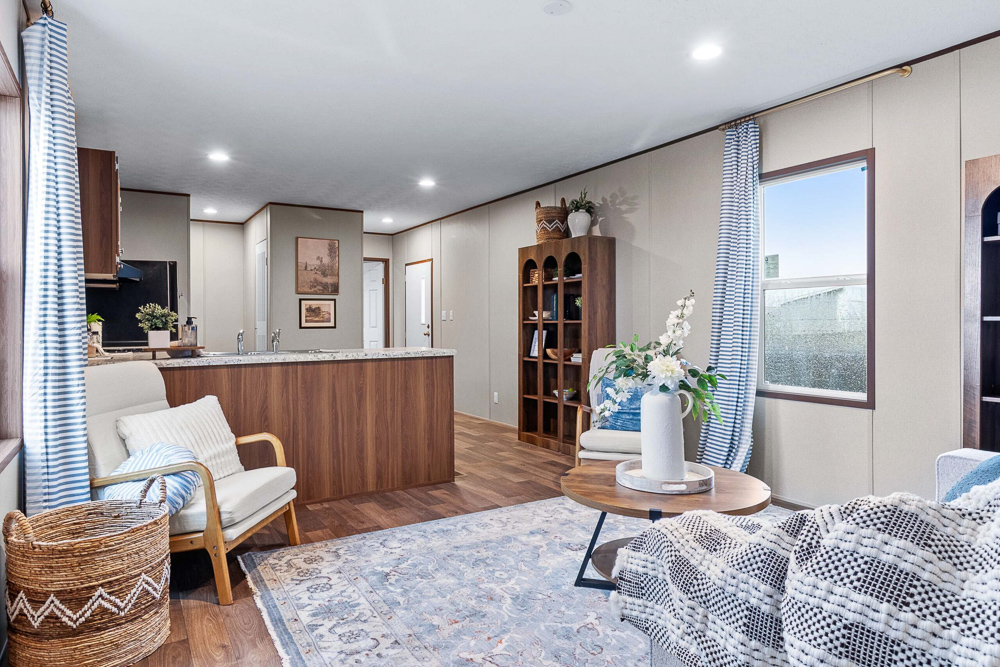

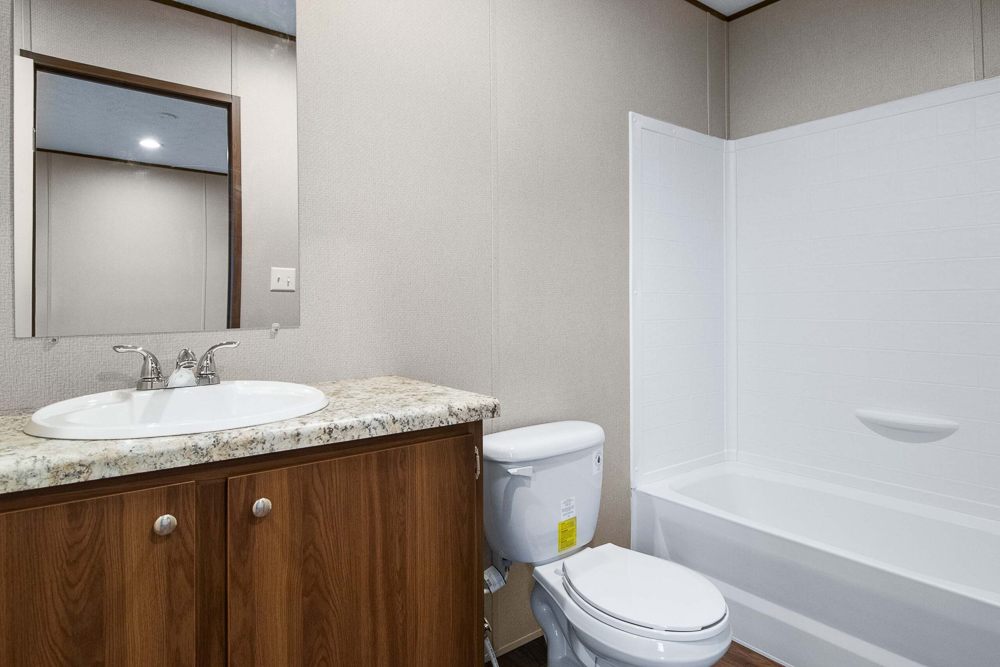

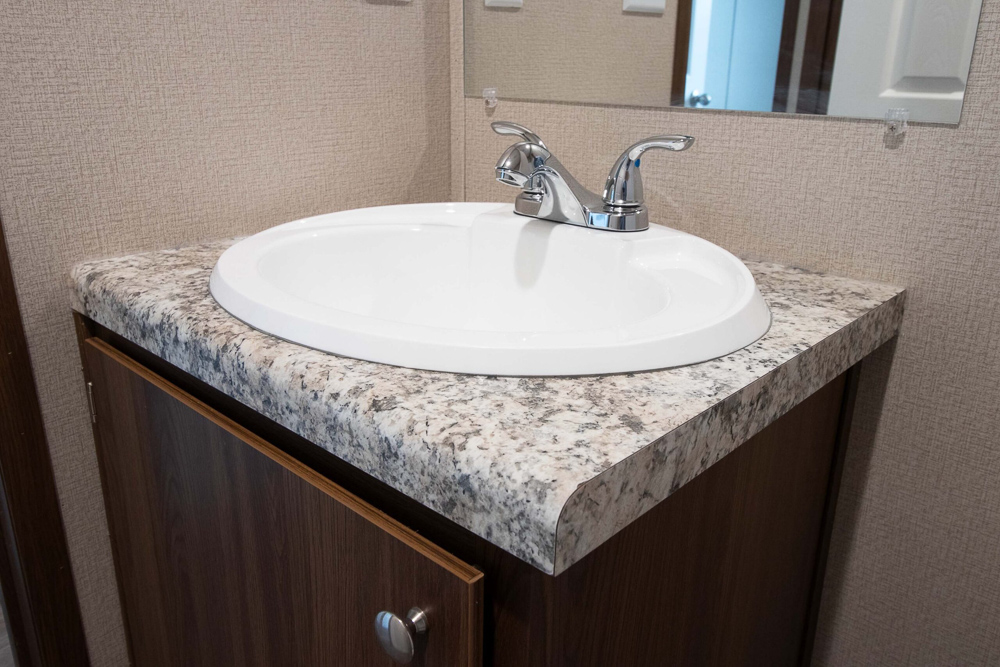

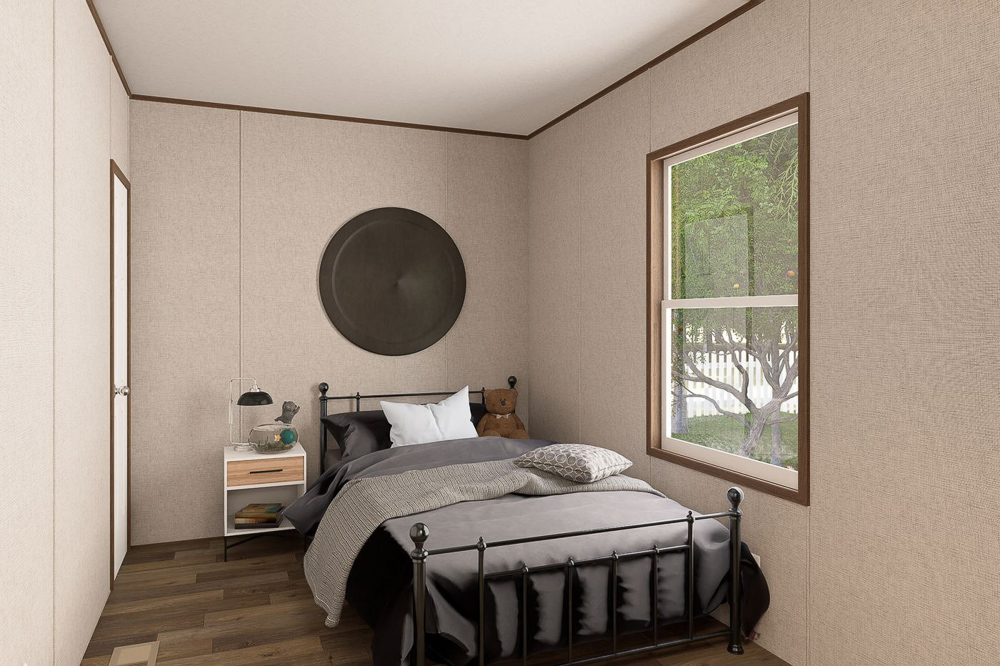

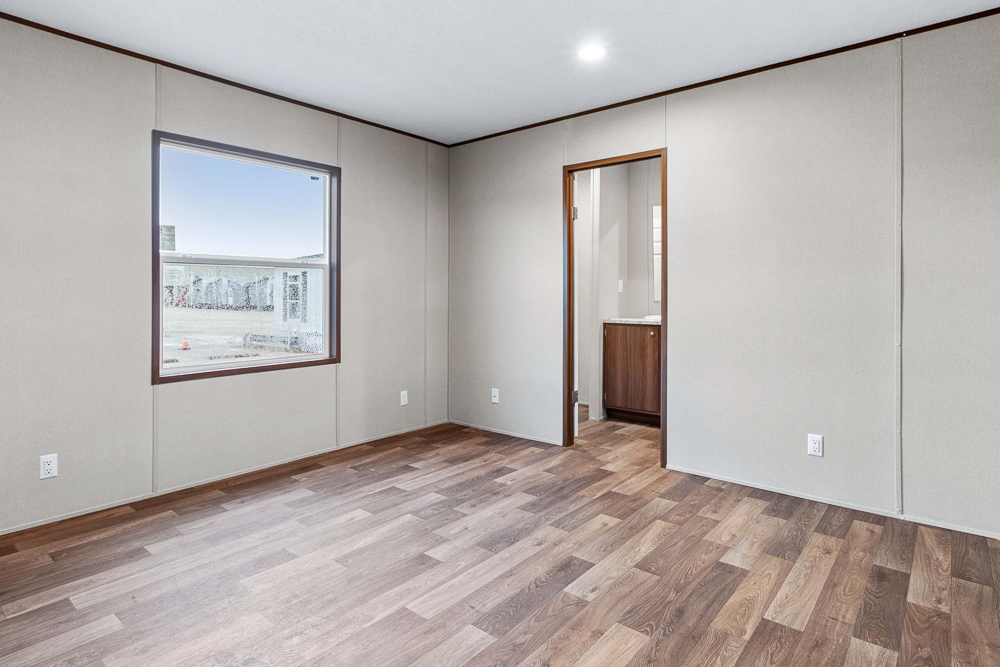

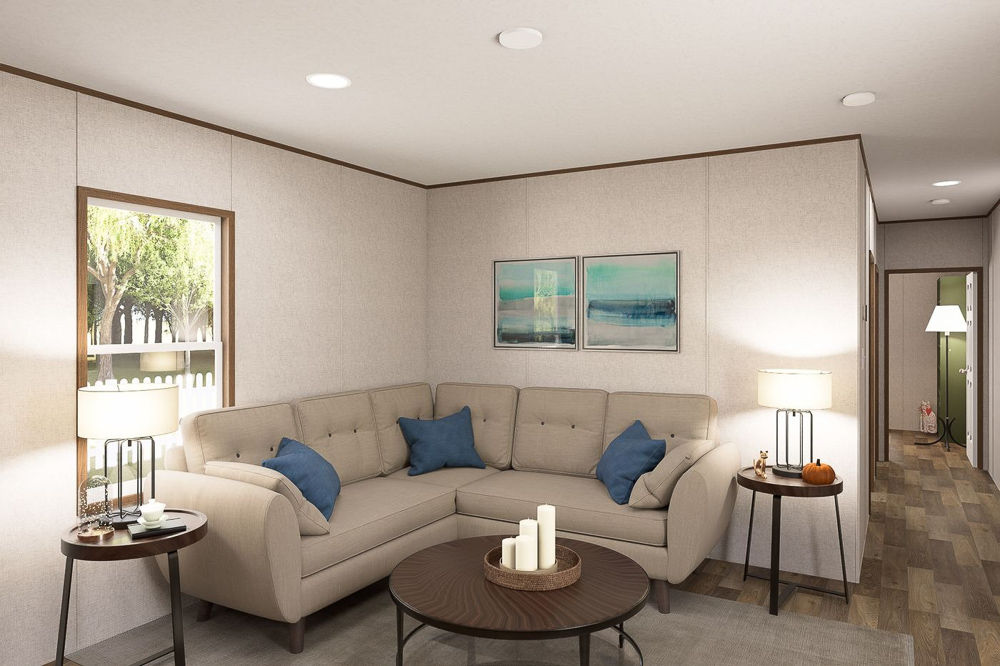

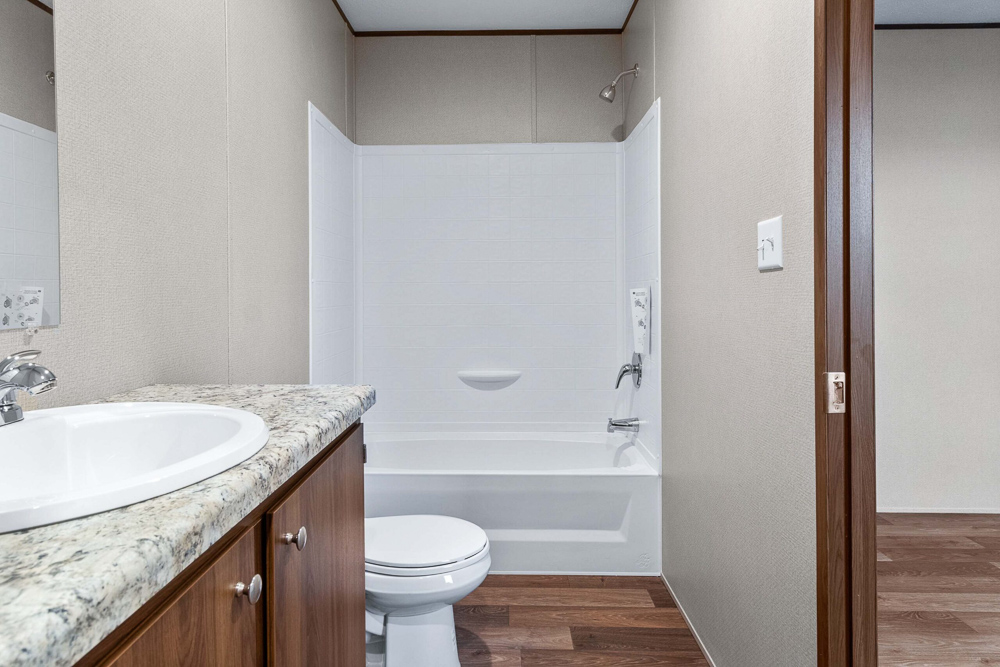

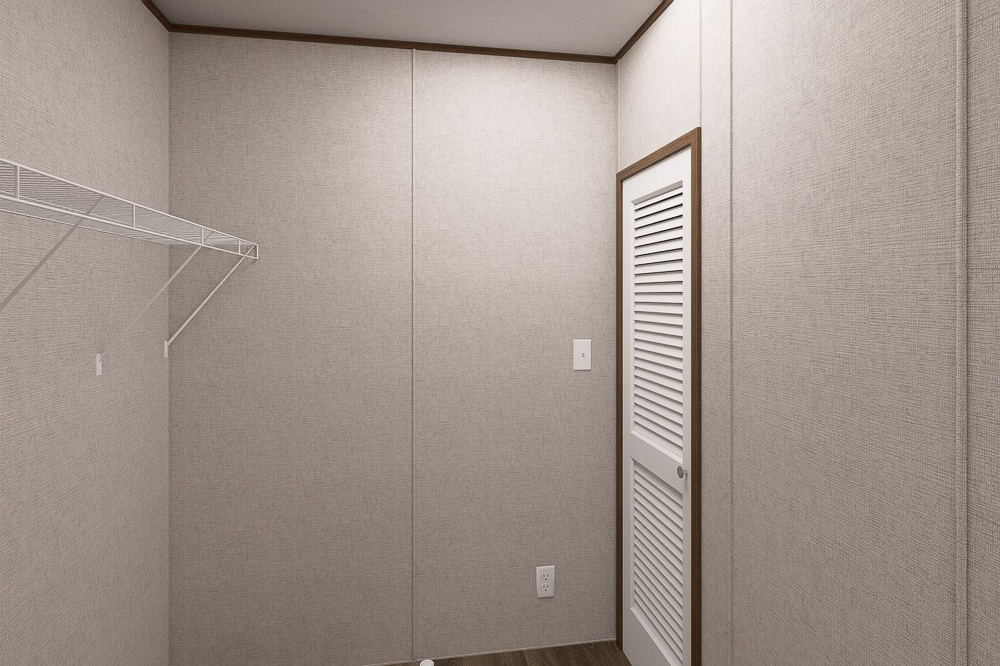

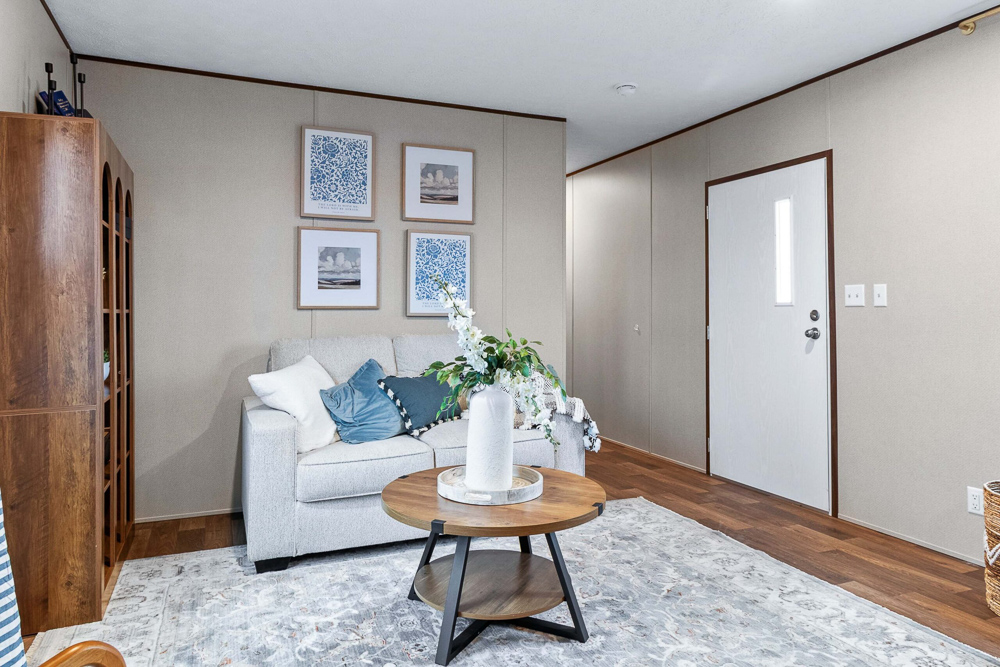

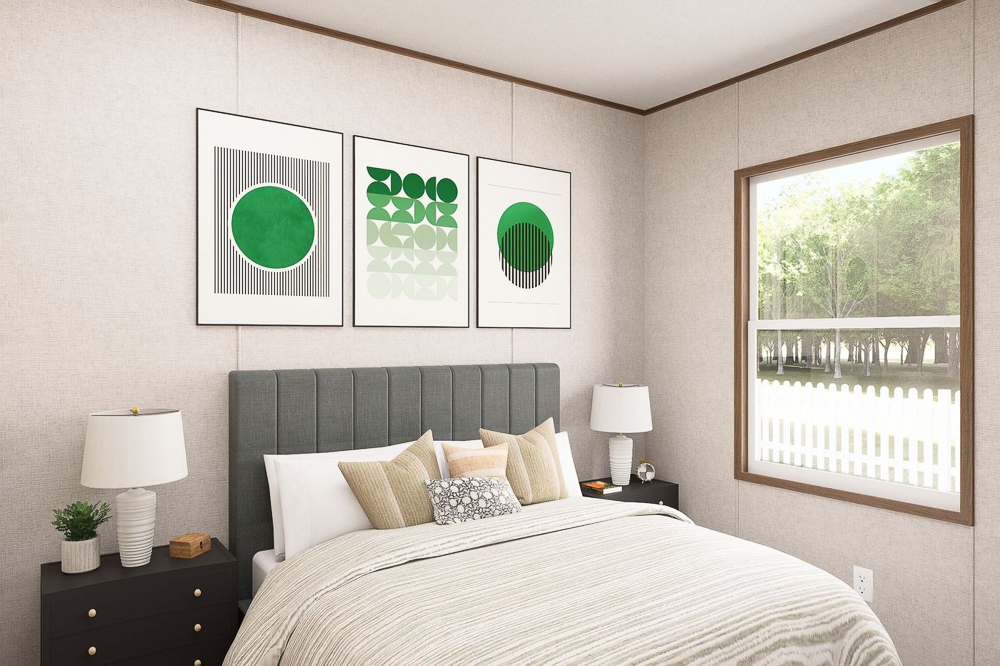

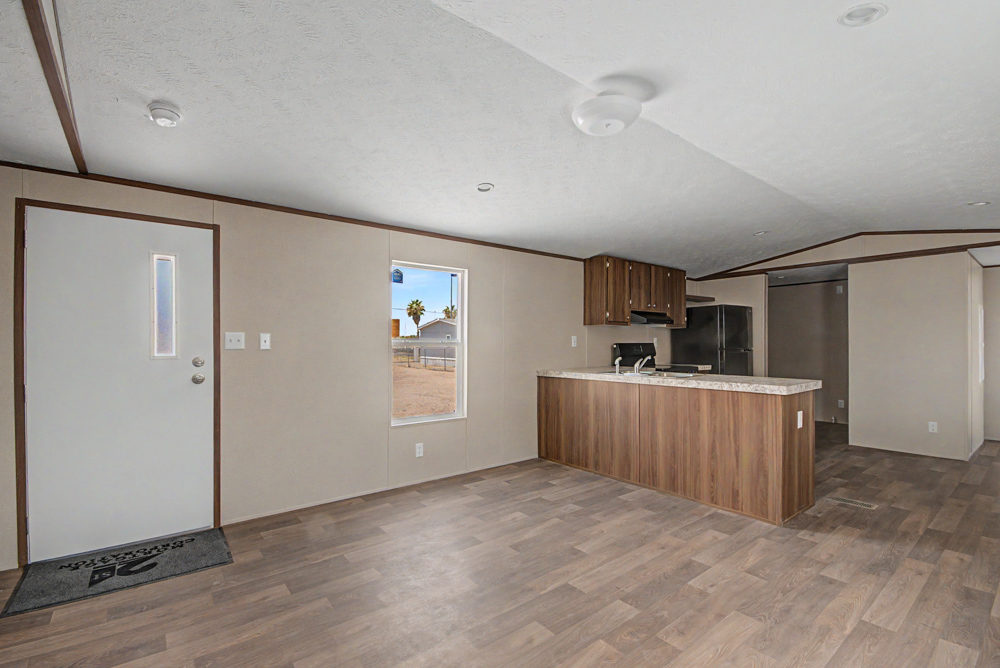

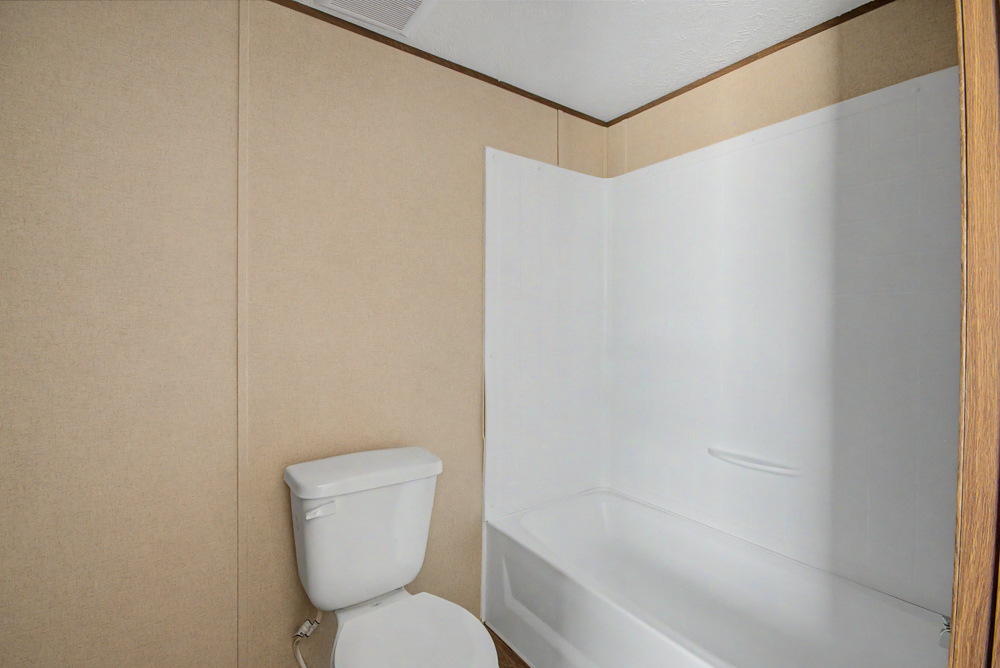

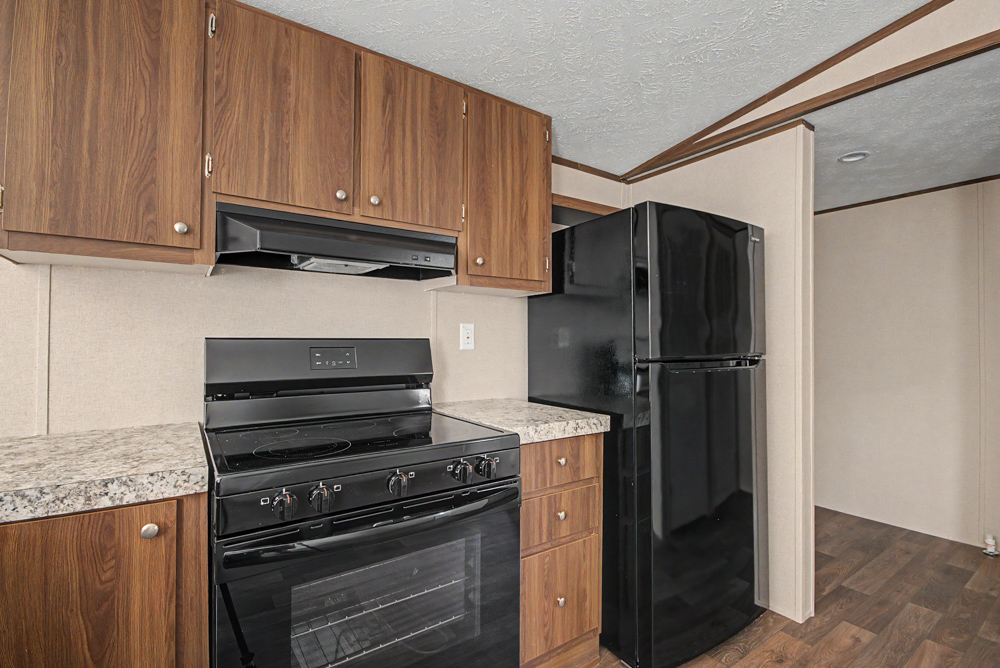

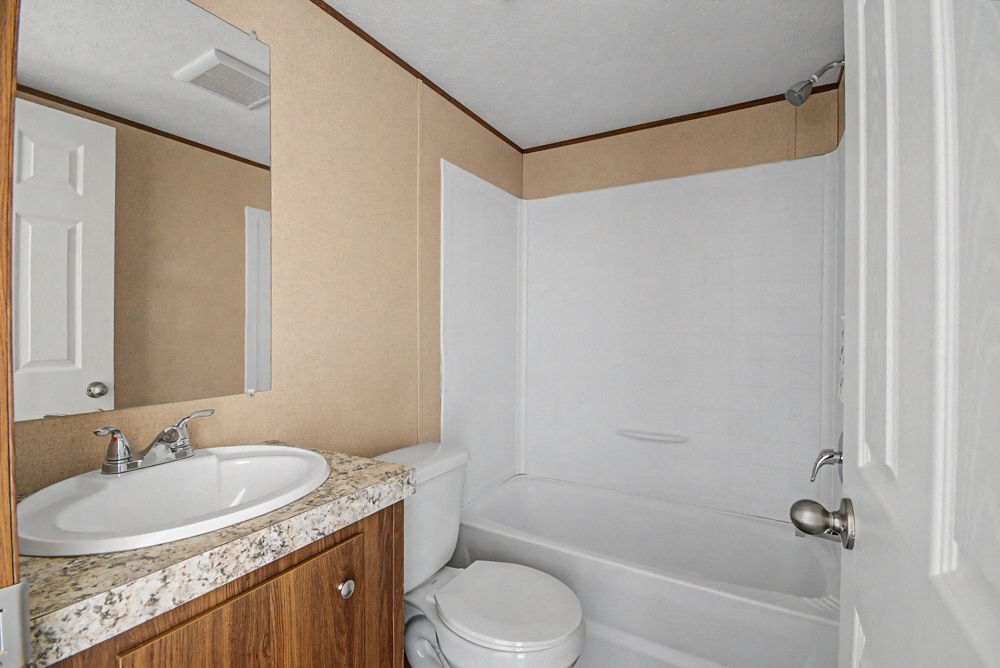

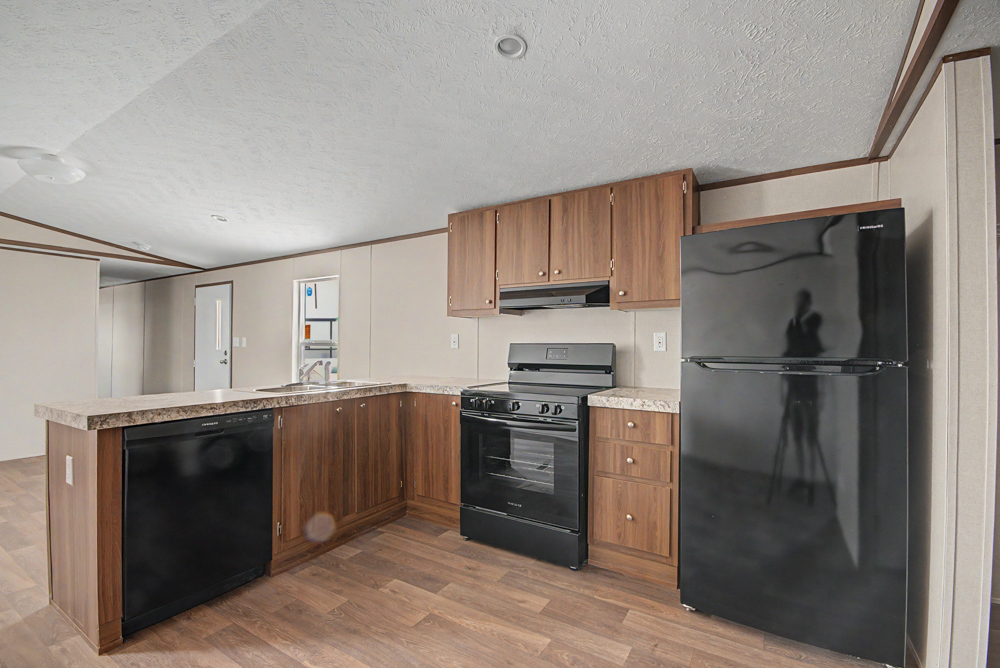

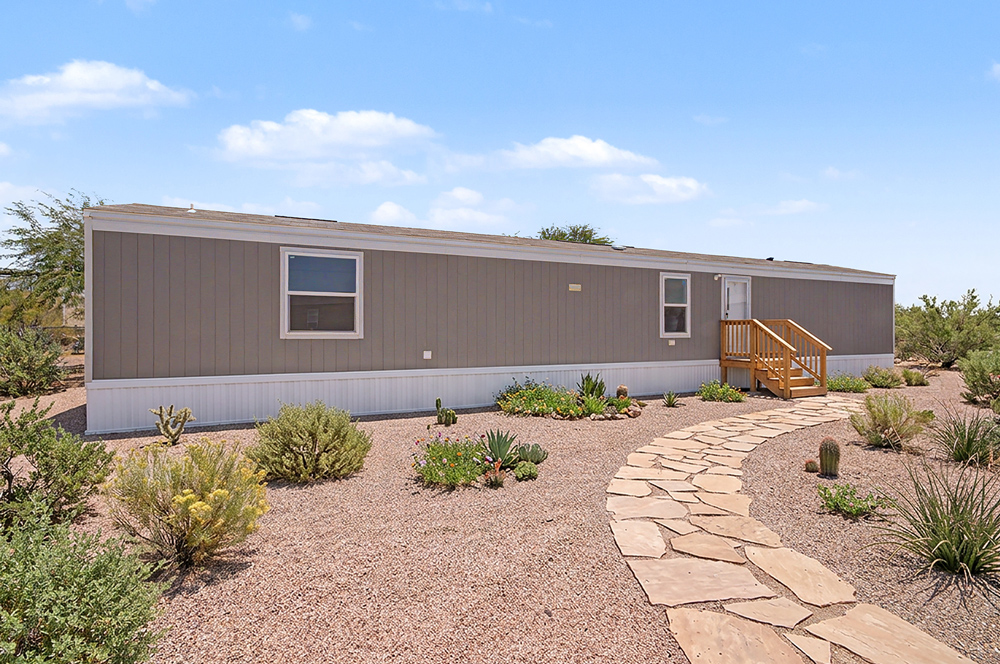

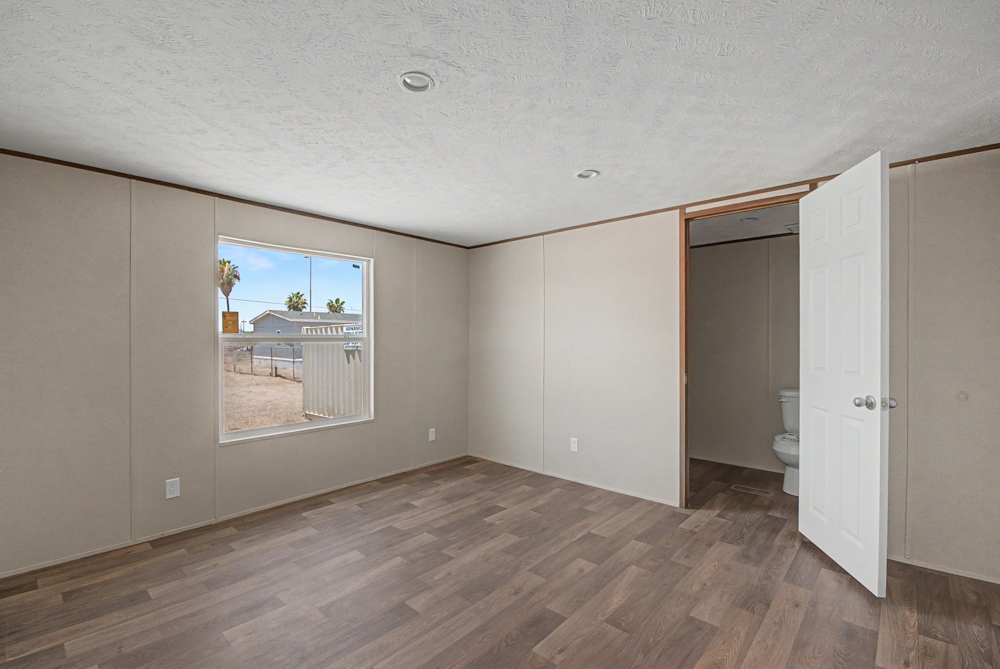

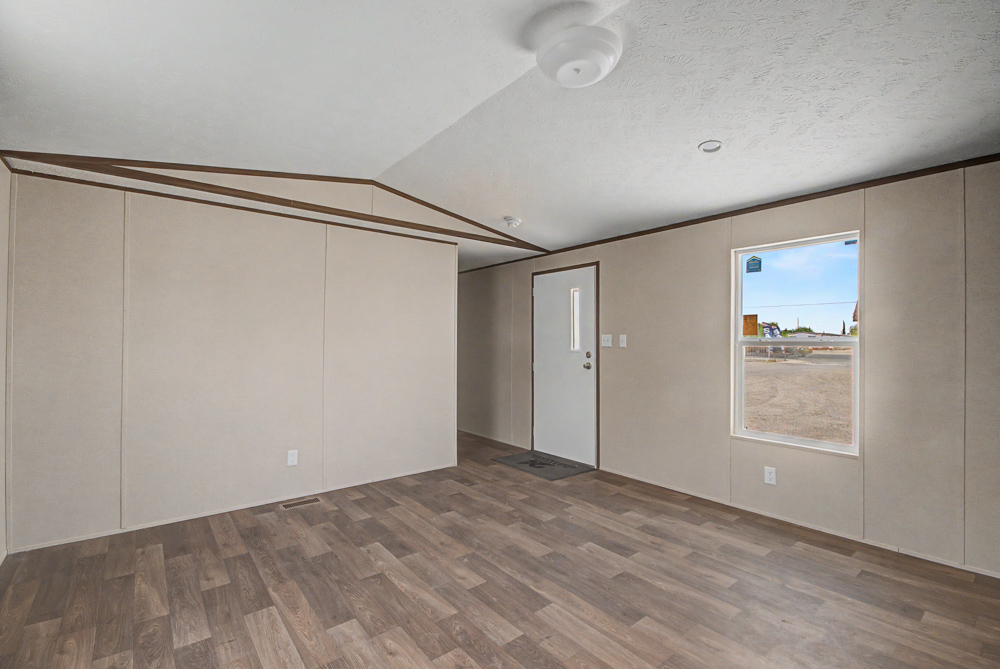

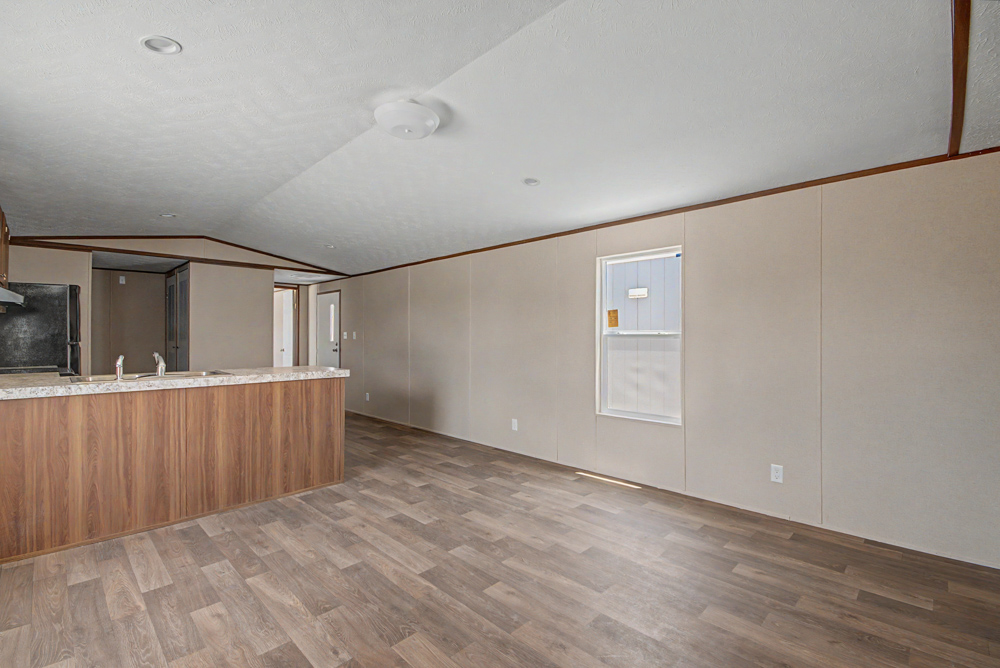

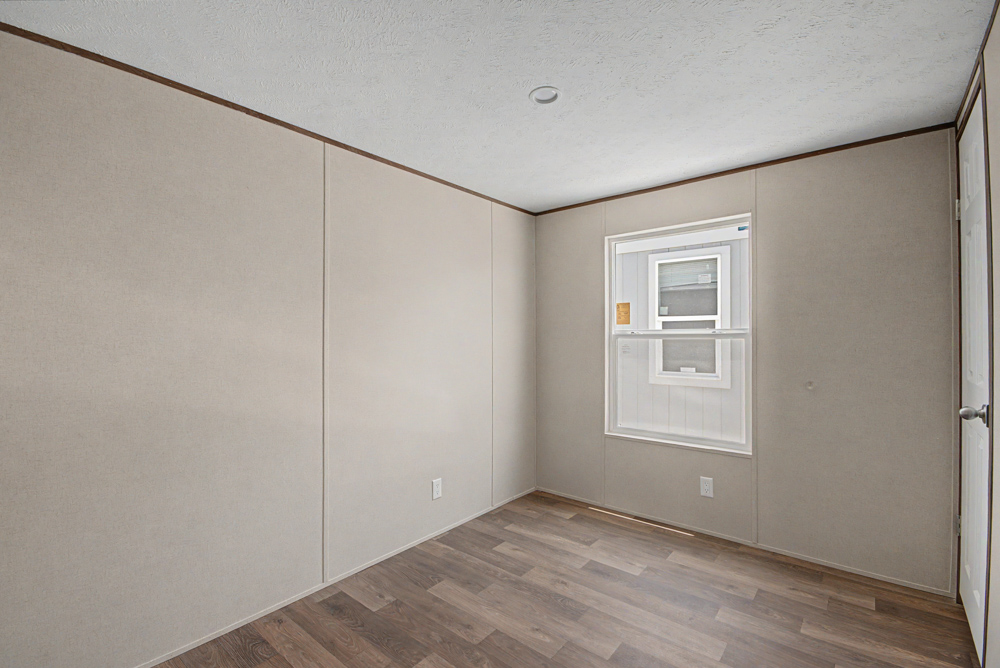

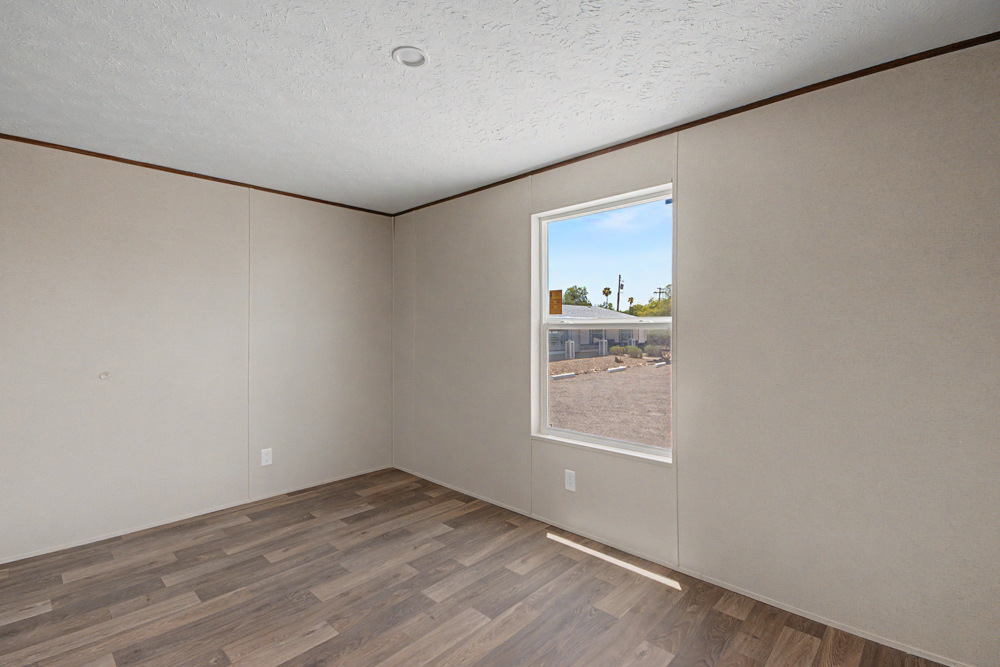

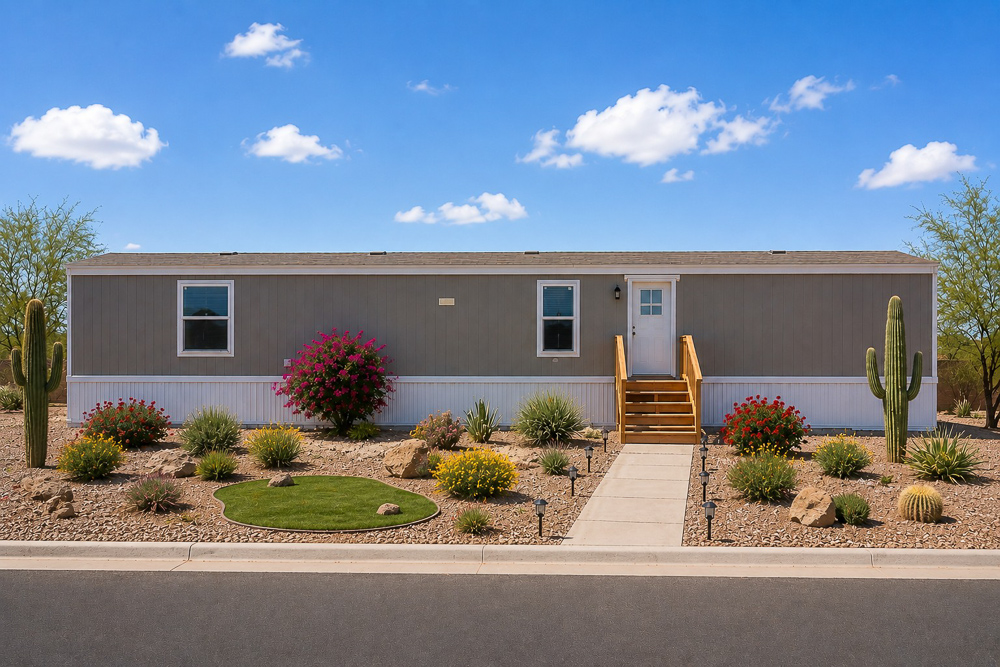

Littlefield Photo Gallery

Ask your housing consultant about the other great features that come standard on the Littlefield manufactured home.

Current Price Request

For info about the Littlefield Floor Plan
Call 1-800-839-9901 or fill out the form below:

Share the Littlefield

Standard Features

TRU Homes Singlewides Series by Clayton Homes |

GENERAL:

HUD Code
20 lb. Roof Load Std., 30 psf optional
Wind Zone I Std., zones II and III optional
Thermal Zone 2 Standard, Thermal Zone 3 Optional

FRAME:

I Beam: 12” or 10” model specific
Outriggers: 96” spacing
Crossmembers: 96” spacing
Header: (Front/Rear) Flush, not recessed
Axles: Spread (no equalizers) overslung mounted
Brake Axles: Two, except where more are mandatory by state DOT
Hitch Beam: 8” Detachable Hitch

FLOOR:

Joists: 2×6 / 16” O.C.
Carpet: TRU Select
Carpet Bar: None
Pad: 5 lb. Rebond Pad
Vinyl: TRU Select
Decking: 19/32” 4×8 OSB T&G

EXTERIOR (7’-0” SIDEWALLS, 7’-0” ENDWALLS):

Vinyl Siding: Standard
Sheathing: WZ I Foam standard, plant specific brand.
Exterior Faucet
Shutters: Front Door Side Windows

WINDOWS AND DOORS:

Front door: In Swing Door w/ Storm
Rear door: Out Swing 9-Lite Door
Interior doors: TRU Select
Windows: Thermal Pane Low E Vinyl, size per prints

ROOF / CEILING:

Shingles: 20 year
Trusses: 24” O.C. spacing
Sheathing: 7/16” OSB
Insulation: Blown Fiberglass
Ceiling: Textured
Ceiling Slope: Vault/Flat Ceiling
Attic Ventilation: Static & Ridge Vents

PLUMBING:

Water Heater: 40 gallon electric
Kitchen Sink: Stainless Steel, dbl bowl

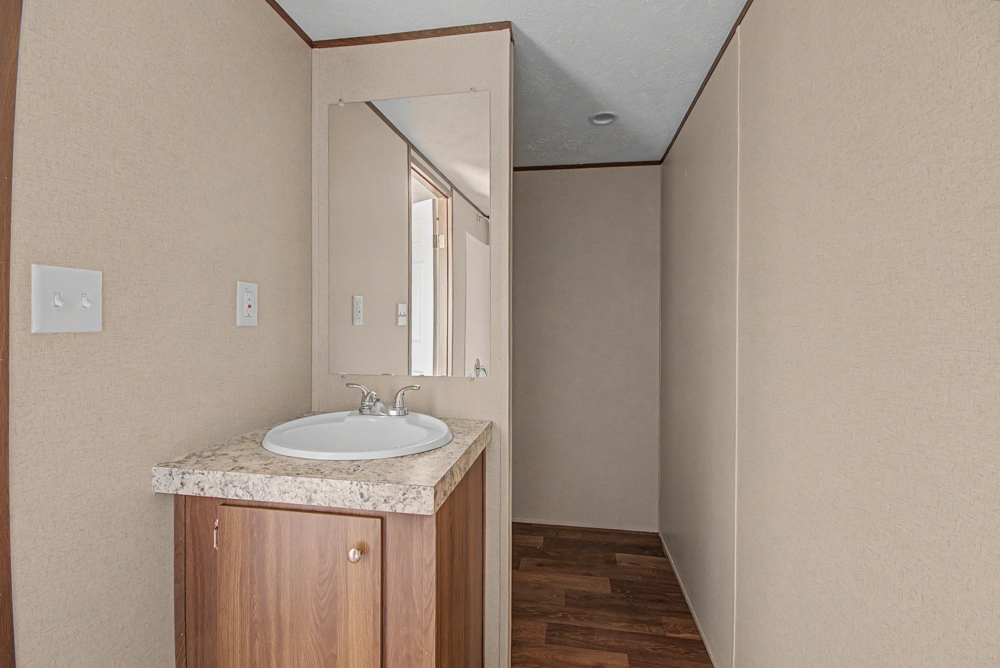

Lavatory Sinks: Plastic
Faucets: Plastic

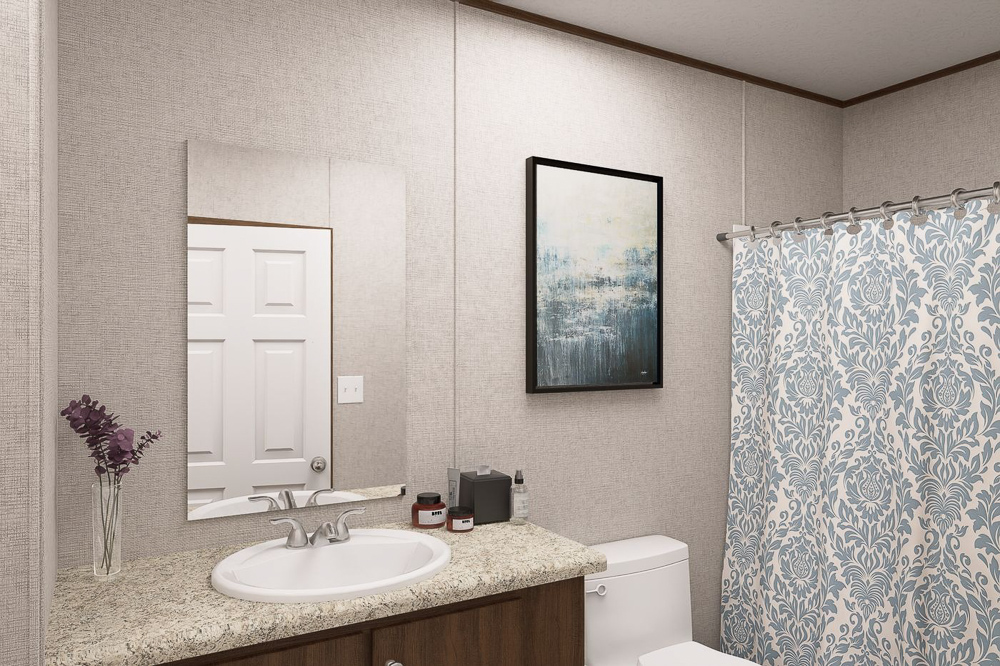

Master Bath: 54 ABS Plastic Tub

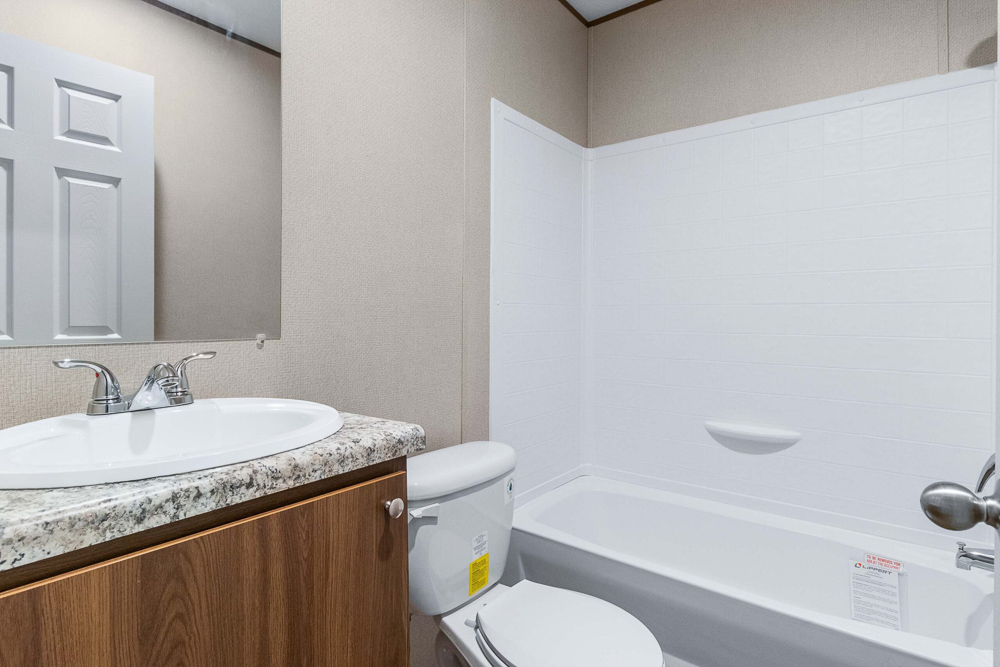

Hall Bath: 54 ABS Plastic Tub
Whole House Water Shut Off
Ice Maker Ready

HVAC:

Heat: Electric (gas optional)
Ductwork: Metal duct
Thermostat: Ecobee Smart Thermostat

ELECTRICAL:

Load Center: 200 amp
(100 amp allowed when gas option ordered – gas range and gas furnace)
Exterior Receptacles: (1) GFI recept and cover
Interior Receptacles and Switches: White, self contained
Phone Jack(s): None
AC: Conduit

WALLS:

Exterior Wall Construction: 2×4, 16” O.C. spacing
Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
(combo vault/flat ceiling, per prints)
Interior Wall Construction: 2×3, 24” O.C. spacing (per print)
Wall Coverings: 3/8” paper on gyp
Wall Coverage at Closets: 3/8” gyp, raw

INTERIOR FEATURES:

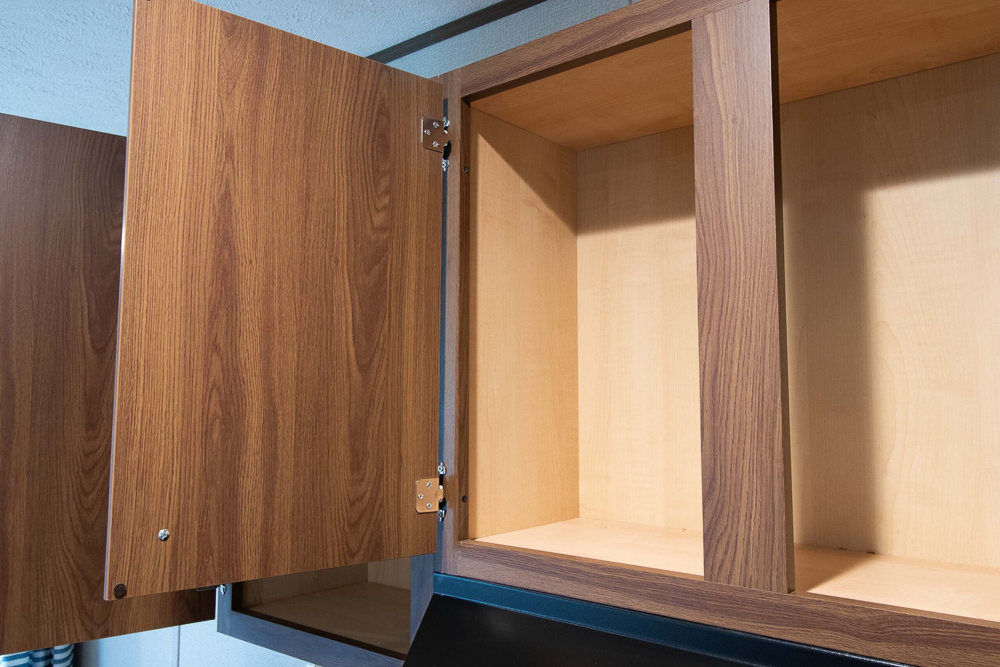

Cabinets: DuraCraft (duracraftcabinets.com)
Countertops (All): Laminant (TRU Select)
Backsplash: None

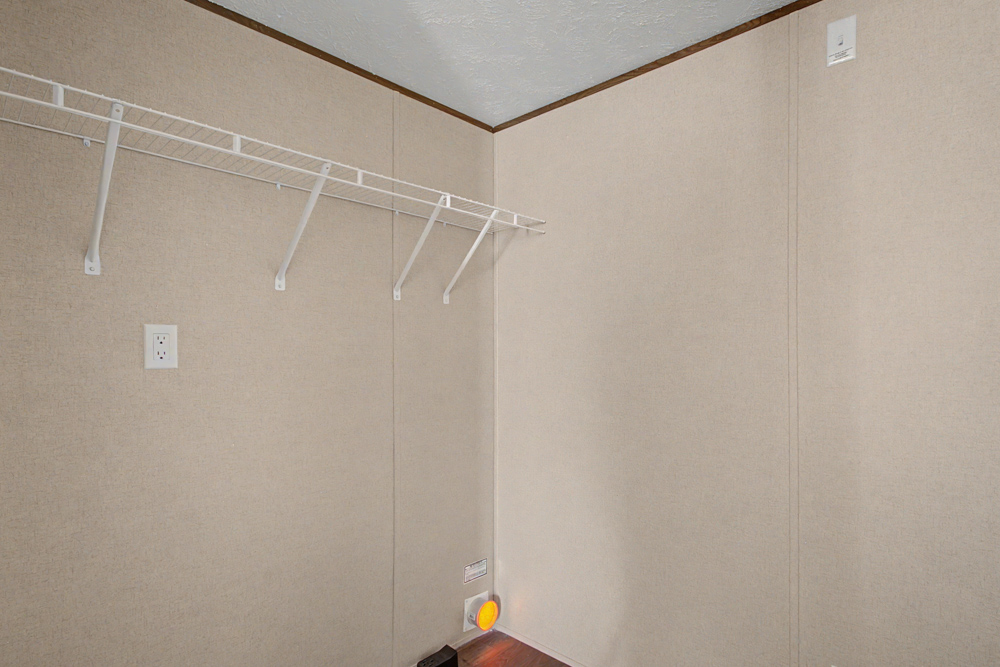

Closet Shelving: Closet Maid – vinyl wrapped metal
Utility Shelving: above washer/dryer

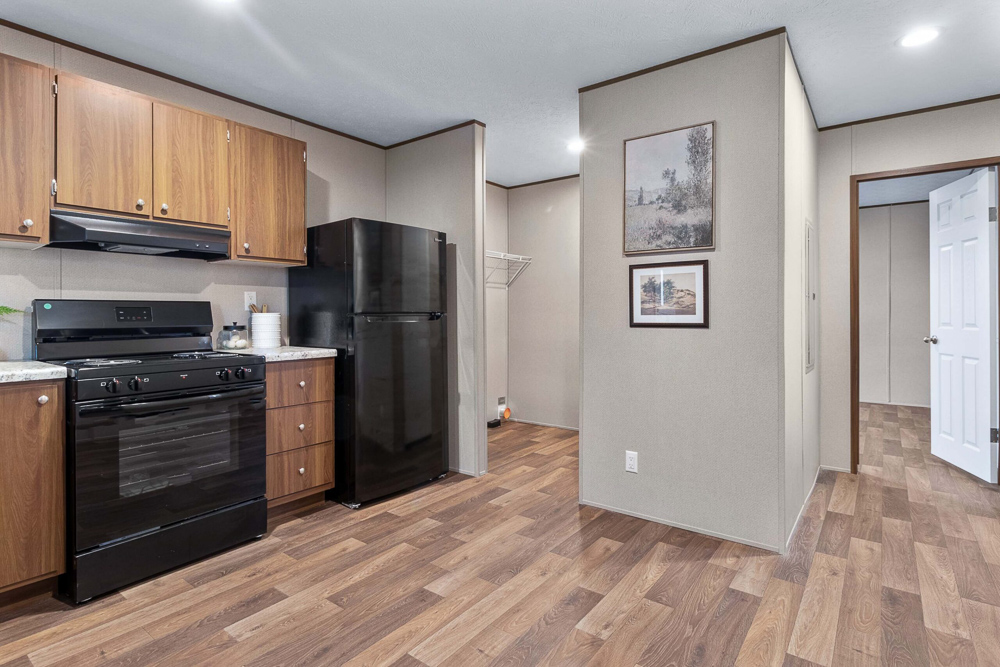

Refrigerator: 18 CF
Range: Electric
Range Hood: 30”, 100 cfm min, vent through sidewall

COLOR SCHEME:

TRU Select

THERMAL (INSULATION AND WINDOW SPECS):

Zone II (standard) Floor: R-11 Wall: R-11 Ceiling: R-14
Zone III (optional) Floor: R-22 Wall: R-11 Ceiling: R-30
